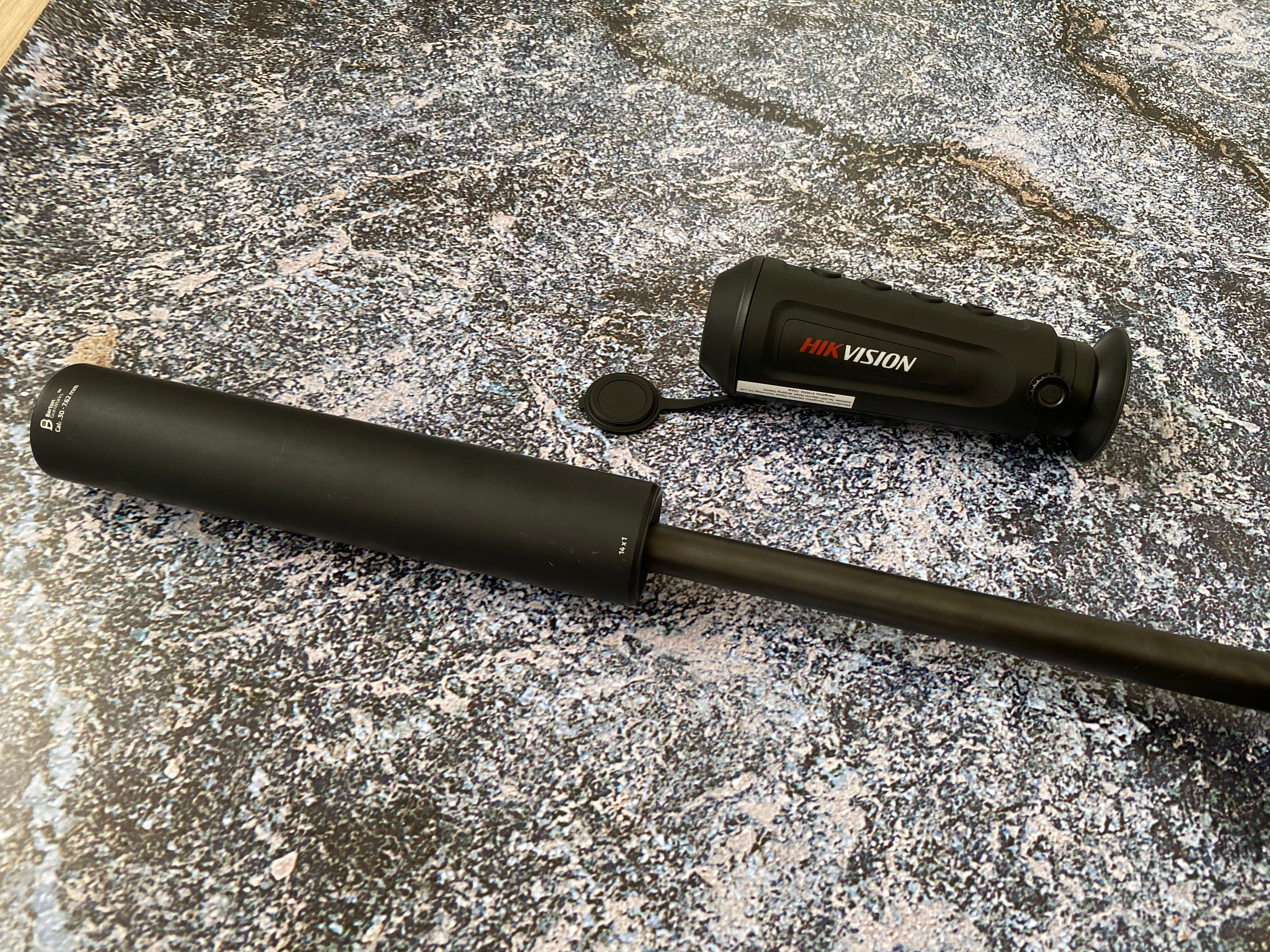

HIK Vision Vulkan 15mm 35mK Smart Thermal Monocular
The HIK Vision Vulkan 15mm delivers a high-quality thermal image and packs a host of features normally reserved for high-end thermal spotters.
The high resolution 384 x 288, 17µm thermal sensor (35mK NETD Rating) and HIK software delivers a detailed image to the screen. The WiFi and dedicated app allows you to take complete control of the unit's settings and features from your smartphone.
35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!
IP67 rating guarantees a robust chassis capable of repelling dust and rain, protecting you from the worst of the weather.
This is all backed up by a 3 year UK warranty.
MAIN
Sensor 384×288px @ 17µm
Objective Lens 15 mm
Detection Range (Vehicle 1.4 x 4m) 1353 m
Detection Range (Human 1.8 x 0.5m) 441 m
SENSOR
Type Vanadium Oxide Uncooled Focal Plane Arrays
Resolution, pixels 384 × 288 px
Pixel pitch, µm 17µm
Frame rate, Hz 50 Hz
NETD Rating 35mK
OPTICS
Objective lens F1.0
Magnification (Optical) 1x
Magnification (Digital) 1x, 2x, 4x,
Field of view 24.6° × 18.5° (H × V)
DISPLAY
Type 5.08mm, LCOS
Resolution, Pixels 720 × 540
Colour Palettes Black Hot, White Hot, Red Hot, Fusion
VIDEO & SOUND
Video Recorder YES
Sound Recorder NO
Build in memory, Gb 8 Gb
ADDITIONAL FEATURES
Hot Tracking YES
WiFI hot spot YES
T-Vision App support YES
ENVIRONMENTAL
Degree of protection, IP code IP67
Dust protection Protected against dust ingress
Water protection Protected against temporary submersion in water
Operating temperature range -20 °C to 55 °C
WEIGHT & SIZE
Dimensions, mm 161 mm × 61 mm × 57 mm
Weight, kg 0.27 kg
POWER SUPPLY
Operating time on battery
(WiFi & Hot tracking disabled) 7 hours continuous running
Charging interface USB-C
Battery capacity after 1000 cycles 80%
HIK VISION THERMAL SENSOR
At the heart of the Vulcan 15 is the HIK Vision 384x288px, 17µm thermal sensor with a NETD rating of 35mK. This is the first time a high-resolution sensor of this quality has been offered on an entry level thermal spotter.
35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!
Combine this with the HIK software that processes the image you see on screen and you have an unbeatable package that performs well above its price point.
T-VISION APP: Connect – Control – Stream
Connect your smartphone and take control of all features of the Vulkan 15.
The T-Vision app allows you to stream the output in real time allowing you to share your viewpoint with a friend.
You can also record images and video, optimise the colour profile, display settings and magnification all from the easy to use app.
HOT TRACK
Activate Hot Tracking and your Vulkan 15 will highlight the hottest spot detected in the current frame with a green crosshair.
This is useful to highlight small heat sources as you scan around.
This feature can also be deactivate in the menu or controlled in the App.
| Brand | HIK Micro (by HIK Vision) |
|---|---|
| Popularity | HIK Vision Vulkan 15mm 35mK Smart Thermal Monocular |
| SKU | HIKVUL15 |
| Unit Type | Thermal |
| Colour Palettes | Yes |
| Detection Range | 1350m |
| Display Resolution | 720x540 |
| Display Type | LCOS |
| FOV @ 100 yards | 24° |
| Magnification (Digital) | 4x |
| Magnification (Optical) | 1x |
| NETD | <35mK |
| Objective Lens Diameter | 15mm |
| Operating Temperature | -20/+40°C |
| Pixel Pitch | 17μm |
| Rangefinder | Stadiametric |
| Refresh Rate | 50HZ |
| Sensor Resolution | 384x288 |
| Video / Sound Recording | Yes |
| Wi-Fi | Yes |
